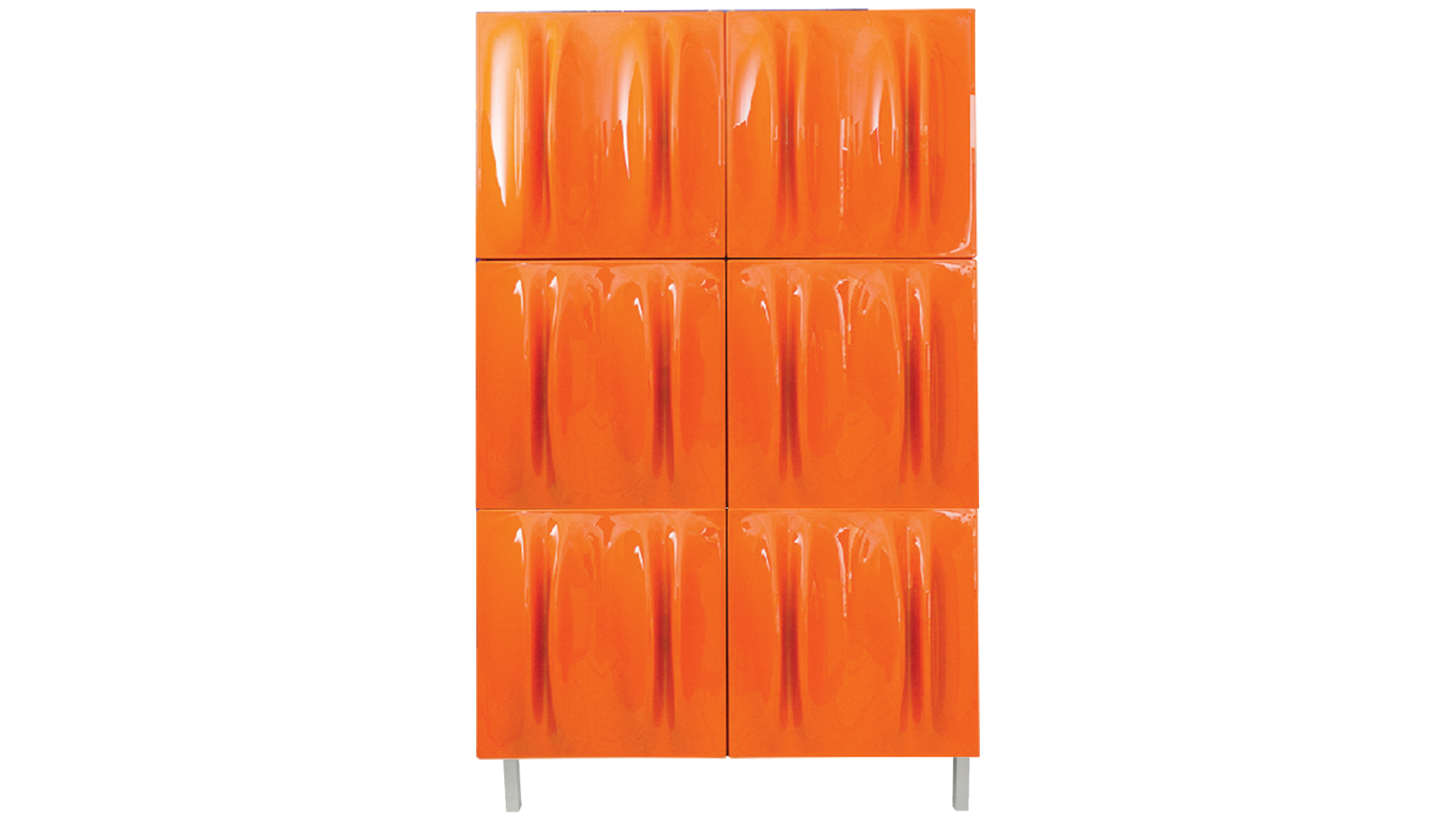

The diffusing acoustic shells are acoustic treatment elements intended for large volume rooms, such as theatres or auditoriums with a stage where orchestral concerts or mere recitals take place. These acoustic diffusing components are meant to project the nonamplified original sound from the stage to the audience. This will enable people to hear the sound coming directly from its sound sources and instruments, without the electro-acoustic inherent characterization or colouring. This panel also aims to enable the stage and the room to be within the same space and not separate in two by the mouth of the stage. JOCAVI’s models have been designed at the specific scale of these needs. Due to its shape and depth, they also have a high diffusion coefficient on medium/low frequencies. The all are large-sized diffusers that provide a very homogeneous diffusion within the diffuse and sound spectrum.
Manufactured in HIPS with a rigid framework, these pieces can be coupled and multiplied in order to suit each project’s demands. When mounted, several modules should be grouped so as to obtain an area that is proportional to each space.
Mounting: They can be hung from the ceiling in a strategic position in order to obtain sound diffusion in the required angles. They can also be mounted with a motorized rigging system from the stage ceiling. These elements / modules are fastened with steel cables by using appropriate mounting accessories. Their low weight makes mounting easier. As with any other JOCAVI diffusion panel, these models can also be applied on false ceilings, flat ceilings or walls.

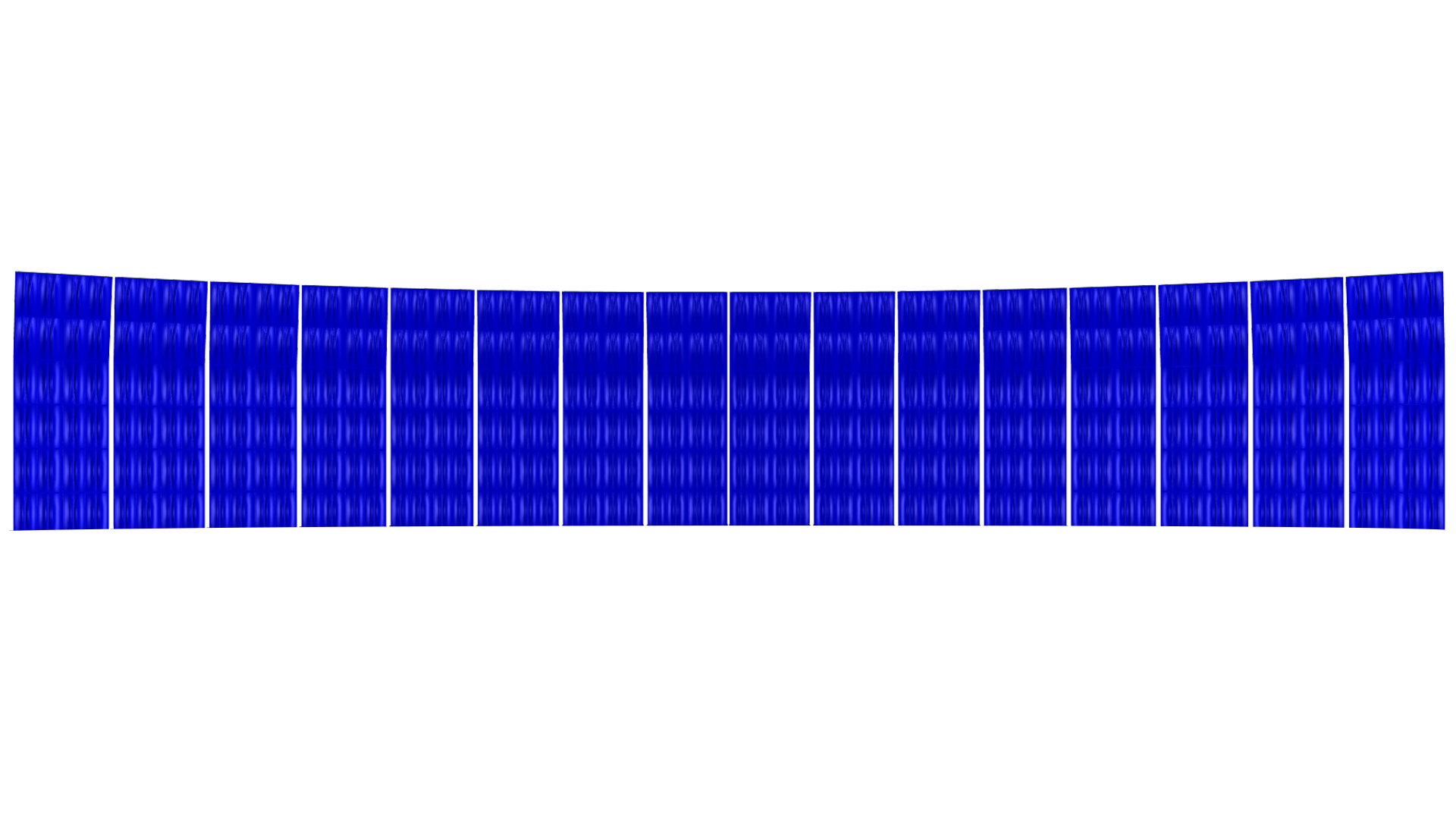

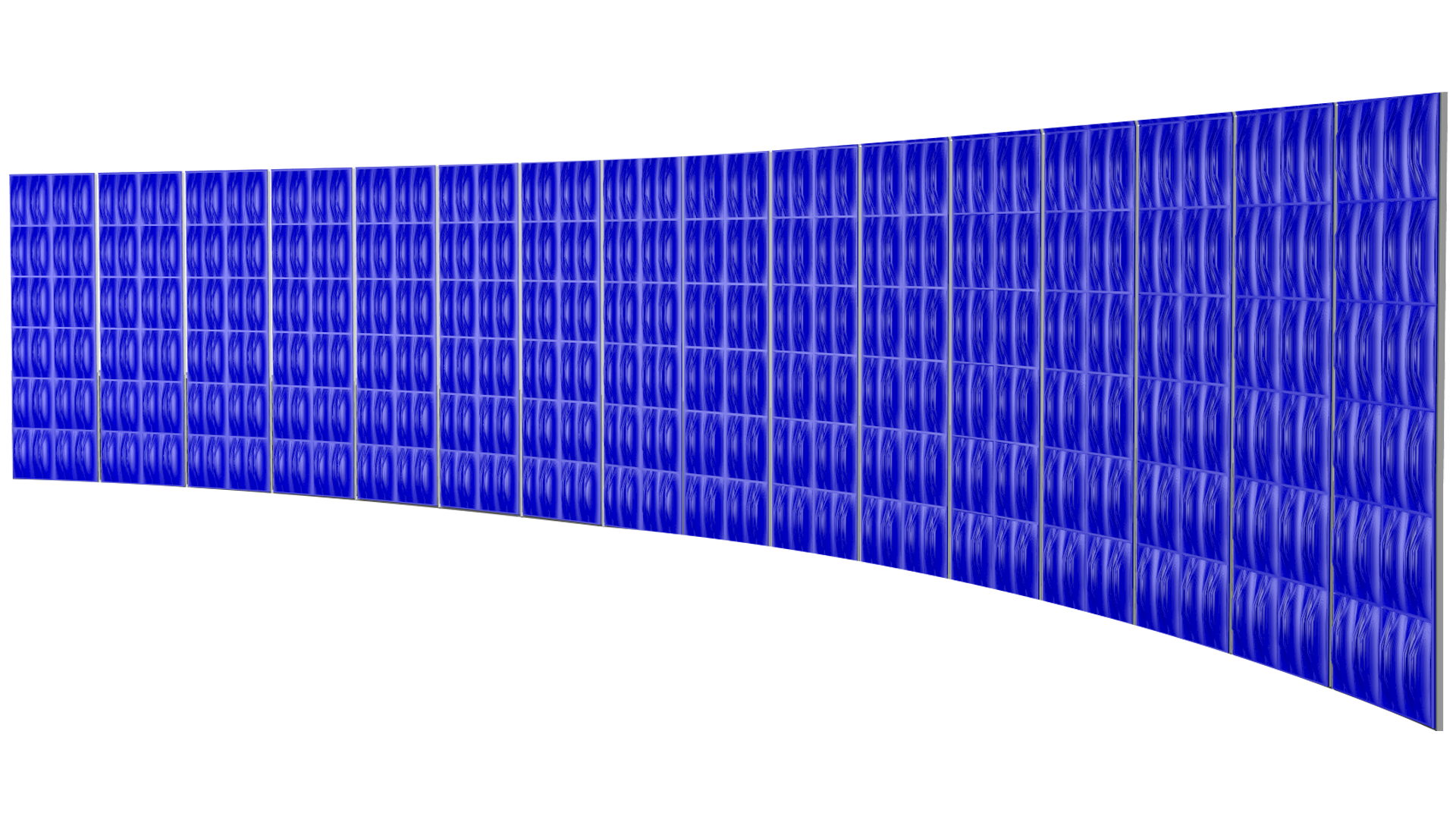

Fixed acoustic shells come in lateral, background and ceiling modules. These allow various angulations to be defined according to the degrees of incidence towards the audience.
These modules are suspended above the stage using aluminium and steel cables. They may be moved manually or using a system electric engines where the most common positions can be pre-programmed.
When not in use, the shells can be placed together completely inconspicuously.


Manufactured with recycled HIPS.
Average diffusion: 0.67/m2 [>100Hz;<5KHz] NRC: 0.1/m2 [>250Hz;<10KHz]
Fire-resistance: V0 – UL94 standards (similar to M2)
100% recyclable
Installation: accessories included.

Product Information

  • EAN: 5600924053400
  • Reference: N3Q180p
  • Color: Black
  • Finishing: Gloss
  • Material: HIPS
  • Material Info: Finishing BlackGloss
  • Country of Origin: Portugal
  • Model Variant: NEO3Q 180 - Plate (180 x 120)HIPSGloss

Model & Sizes

Size Width Height Length
Metric Size 1800 cm 1200 cm 160 cm
US Size 70,87 in 47,24 in 6,30 in
Metric Weight 34,00 Kg kg
US Weight 74,9571 lbs

Acoustic Graph
